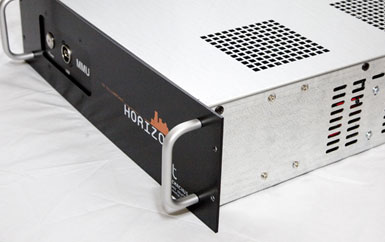

Horizon Multi Media Unit

Roll over thumbnail images to view larger version

Benefits

Cost effective way to simultaneously display and manage a variety of multimedia information and applications
Cost effective virtual matrix solution
Reduces the amount of hardware required to manage multimedia product
Increases the reliability and availability of multimedia product in control room environments
Supports a variety of modern plasma, LCD or control screen technologies

Request a demo

Overview

Horizon Multi Media Unit – a powerful yet cost effective rack mount hardware solution designed to meet a wide range of video and audio applications including:

The ability to view and display a variety of standard and bespoke video applications
Convert proprietary video to standard PAL format
Supports PAL and Megapixel video applications
Supports Windows based software applications

The MMU can be provided to the user as a PC or alternatively can be driven by a programmable CCTV keyboard. Support personnel can remotely access the hardware and software to provide cost effective and response support to operational personnel.

The MMU can support a variety of software applications and can be locked down (in software build) to prevent unauthorised user tampering or access to applications. The hardware supports 4 simultaneous screen outputs in both analogue (composite) and VGA formats. There are 3 different processor specifications available to support a wide range of applications. The MMU can support up to 30 MPEG4 25 fps PAL images simultaneously across 4 screens. The hardware and software can be branded for OEM requirements.

Applications

The MMU is the ideal hardware platform to support CCTV control room functionality including:

Virtual Matrix
Live video and audio
Recorded video and audio
Telemetry control
Mapping
Tracking
Alarms

Specification

MMU High Specification

Dimensions: 427mm(W)x490(D)x133mm(H)
Voltage: 240V AC
Power Consumption: 600w MAX
Operating temp: 0-45 Degree Celcius Ambient

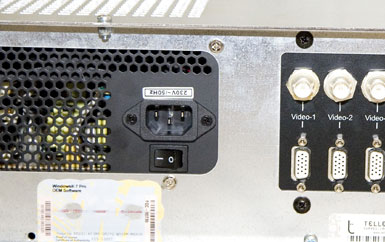

Video Outputs: 4x VGA, 4x BNC Analogue Out
Audio output: 1x Stereo Audio

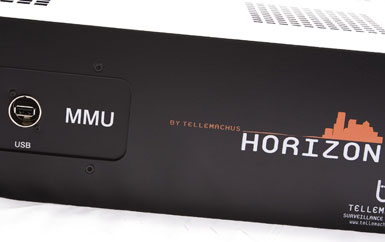

USB: 2x USB on the Rear. 1x USB on the Front Panel
Network: 1x Gigbit RJ45 LAN Port
Processor: 3Ghz Core2 Quad
Serial Connections: 4x Serial Connections for telemetry. 1x Serial Connection for use with UPS or configuration
Multifunction switch: Triple functionality button that will power the LBD on and can also power it off. It will also light up when the LBD is powered to give the user full transparency as to the LBDs current state.
Supported Software: Tellemachus Horizon Viewer, Tellemachus Horizon Control Center, Tellemacus Horizon Serial Passthrough, Indigovision Control Center. Other Software can be catered for upon request.
Locked down software build: Included
No. of Supported Horizon Streams: Up to the system Maximum (100)
No of Steams (Video Set at 4mb/s at Full Resolution) (MPG4): 30 steams, (H.264): 13 streams

Specifications for the Mid and Low MMU’s are available upon request.

Product data sheets

HORIZON Multi-Media Unit
